The model number of D641X-16Q valve is: D-valve name is butterfly valve, 9-drive mode pneumatic, 7-connection form is flange, 1--mechanism is neutral, X-sealing surface is rubber, 16-represents 1.6MP (16 kg pressure), the C-valve body is made of ductile iron. This is the model number of the manufacturer of the pneumatic butterfly valve. Abbreviation: pneumatic butterfly valve or pneumatic pair butterfly valve. The meaning and editing instructions of the pneumatic butterfly valve model:
Grow Light panel with scientific spectrum, include red, warm white, 6000k, UV IR led, the best grow light for indoor plant growth. also customized ratio by your requirement.
Quantum Board Grow Light is a great ideal for all kinds of indoor garden plants: lettuce, orchid, organic herbs, pepper, strawberries, succulent, hydroponic, medical plants.
E.g:

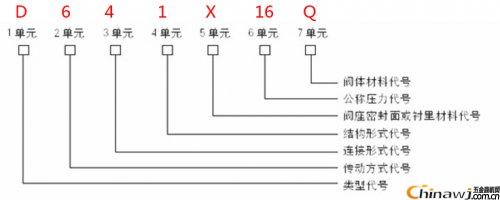

The model number of D641X-16Q valve is: D-valve name is butterfly valve, 9-drive mode pneumatic, 7-connection form is flange, 1--mechanism is neutral, X-sealing surface is rubber, 16-represents 1.6MP (16 kg pressure), the C-valve body is made of ductile iron. This is the model number of the manufacturer of the pneumatic butterfly valve. Abbreviation: pneumatic butterfly valve or pneumatic pair butterfly valve.
(A), butterfly valve name code: "D" butterfly valve.
(B), butterfly valve transmission mode code: "0" electromagnetic movement, "1" electromagnetic-hydraulic, "2" electric-hydraulic, "3" worm gear, "4" spur gear, "5" bevel gear, "6" pneumatic , "7" hydraulic, "8" gas-hydraulic, "9" electric.
(3) Pneumatic butterfly valve connection form code: “1†internal thread, “2†external thread, “4†flange, “6†welding, “7†pair clamp, “8†clamp, “9†ferrule.
(4) Pneumatic butterfly valve structure form code: “0†unsealed triple eccentricity, “1†midline type, “2†single eccentricity, “3†double eccentricity, “4†linkage mechanism, “5†triple eccentricity, “ 6" center line type, "7" single eccentricity, "8" double eccentricity, "9" linkage structure (1~5 is sealed type, 6~9 is unsealed type).
(5) Pneumatic butterfly valve sealing surface or lining material: “B†babbitt, “C†enamel, “D†nitriding steel, “F†fluoroplastic, “G†ceramic, “H†Cr13 stainless steel†target=_blank >Stainless steel, "J" lining rubber, "N" nylon plastic, "P" boronized steel, "Q" lining lead, "R" Mo2Ti stainless steel" target=_blank>stainless steel, "X" rubber (rubber is also divided into :1 natural rubber X1, 2 hapalon X2, 3 ethylene propylene rubber X3, 4 neoprene X4, 5 nitrile rubber X5, 6 wear-resistant rubber X6, 7 fluoro rubber X7, 8 heat-resistant ethylene propylene rubber X8), “Y†hard alloy steel and “W†represent direct processing from the valve body material.
(6), pneumatic butterfly valve nominal pressure code: expressed as 10 times the nominal pressure value; for the power plant industry, when the medium temperature > 425 ° C, marked the working pressure.
(7) Valve body material code of pneumatic butterfly valve: “C†cast steel, L†aluminum alloy, “P†18-8 series stainless steel†target=_blank>stainless steel, “Q†ductile iron, “R†Mo2Ti stainless steel†target =_blank>Stainless steel, "S" plastic, "Z" grey cast iron.
Http://news.chinawj.com.cn
Editor: (Hardware Business Network Information Center) http://news.chinawj.com.cn
